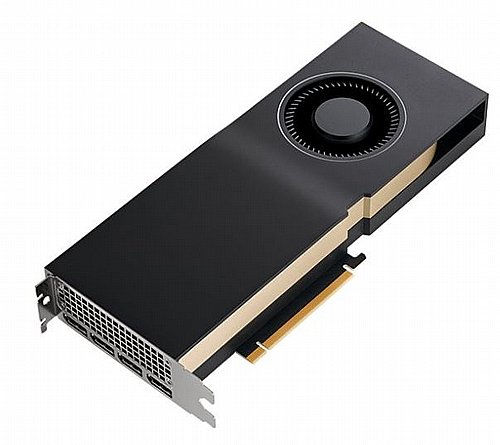

כרטיס מסך PNY NVIDIA Quadro RTX A4500 20GB PCIE 4.0

Performance and Useabilty Features
NVIDIA Ampere Architecture
NVIDIA RTX A4500 workstation GPU offers high performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering within an optimized power envelope. Building upon the major SM enhancements from the Turing GPU, the NVIDIA Ampere architecture enhances ray tracing operations, tensor matrix operations, and concurrent executions of FP32 and INT32 operations.
CUDA Cores
The NVIDIA Ampere architecture-based CUDA cores bring up to 2x the single-precision floating point (FP32) throughput compared to the previous generation CUDA Cores, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX A4500 enables two FP32 primary data paths, doubling the peak FP32 operations.
Second Generation RT Cores
Incorporating second-generation ray tracing engines, NVIDIA Ampere architecture-based GPUs provide incredible ray traced rendering performance. A single RTX A4500 board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR and Vulkan ray tracing, systems based on the RTX A4500 will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. This latest generation of RT Cores is up to 2x faster in ray tracing compared to the previous generation. This technology also speeds up the rendering of ray-traced motion blur for faster results with greater visual accuracy.
Third Generation Tensor Cores
Purpose-built for deep learning matrix arithmetic at the heart of neural network training and inferencing functions, the RTX A4500 includes enhanced Tensor Cores that accelerate more datatypes, and includes a new Fine-Grained Structured Sparsity feature that delivers up to 2x throughput for tensor matrix operations compared to the previous generation Tensor Cores. New Tensor Cores will accelerate two new TF32 and BFloat16 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.
PCIe Gen 4
The RTX A4500 supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.
Higher Speed GDDR6 Memory
Built with 20GB GDDR6 memory, the RTX A4500 delivers the memory throughput required for memory intensive tasks such as ray tracing, rendering, and AI workloads. The RTX A4500 provides large graphics memory to address the larger datasets and models in latency-sensitive professional applications.
Error Correcting Code (ECC) on Graphics Memory
Meet strict data integrity requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations.
Fifth Generation NVDEC Engine
NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1.
Seventh Generation NVENC Engine
NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX 4500 provides better encoding quality than software-based x264 encoders.
Graphics Preemption
Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.
Compute Preemption
Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.
NVIDIA RTX IO
Accelerating GPU-based lossless decompression performance by up to 100x and 20x lower CPU utilization compared to traditional storage APIs using Microsoft’s new DirectStorage for Windows API. RTX IO moves data from the storage to the GPU in a more efficient, compressed form, and improving I/O performance.
Multi-GPU Technology Support
Third Generation NVLink
Connect two RTX A4500 cards with NVLink to double the effective memory footprint and scale application performance by enabling GPU-to-GPU data transfers at rates up to 112.5 GB/s (total bandwidth).
NVIDIA SLI Technology
Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system
Display Features
NVIDIA Quadro Mosaic™ Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
DisplayPort 1.4a
Support up to four 5K monitors at 60Hz, or dual 8K displays at 60Hz per card. The RTX A400 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.
NVIDIA RTX Desktop Manager
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments, especially in the current age of large, widescreen displays.
NVIDIA Quadro Sync II
Synchronize the display and image output of up to 32 displays[iii] from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.
Frame Lock Connector Latch
Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.
OpenGL Quad Buffered Stereo Support
Provides a smooth and immersive 3D Stereo experience for professional applications.
Ultra-High-Resolution Desktop Support
Get more Mosaic topology choices with high resolution displays devices with a 32K Max desktop size.
Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.
Software Support
NVIDIA Virtual GPU Software
Support for NVIDIA virtual GPU (vGPU) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances enabling remote users, to share resources to drive high-end design, AI, and compute workloads.
NVIDIA RTX Experience
NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features. The application is available for download.
Software Optimized for AI
Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High- Performance Computing (HPC) applications.
NVIDIA CUDA Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.
Unified Memory
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
NVIDIA GPUDirect for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.

Architecture
NVIDIA Ampere Architecture
Process Size
8nm
Transistors
28.3 Billion
Die Size
628.4 mm2
CUDA Cores
7168
Tensor Cores
224
RT Cores
56
Single Precision Performance
23.7 TFLOPS
RT Core Performance
46.2 TFLOPS
Tensor Performance
182.2 TFLOPS
GPU Memory
20GB GDDR6 with ECC
Memory Interface
320-bit
Memory Bandwidth
640 GB/sec

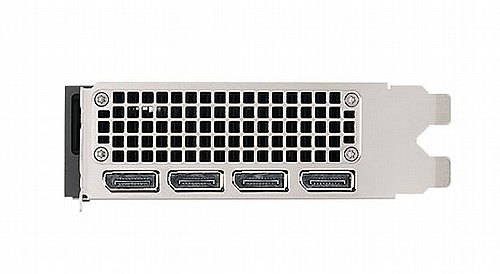

Display Connectors
4x DisplayPort 1.4a
NVENC / NVDEC
1x / 2x (+ AV1 decode)
System Interface
PCI Express 4.0 x16
Form Factor
4.4" H x 10.5" L Dual Slot
Thermal Solution
Active Fansink
Maximum Power Consumption
200 W
NVIDIA Quadro and RTX Power Guidelines
Power Connector
1x 8-pin PCIe
Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
NVIDIA 3D Vision and 3D Vision Pro
Optional 3-pin mini DIN connector bracket
Frame Lock
Compatible with NVIDIA Quadro Sync II
NVLink
2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A4500
NVLink Interconnect
112.5 GB/sec bidirectional

Microsoft Windows 10 (64-bit)
Red Hat Enterprise Linux 7.x
SUSE Linux Enterprise Desktop 15.x
OpenSuse 15
Fedora 31
Ubuntu 18.04
FreeBSD 11.x
Solaris 11

Intel Core i5, i7, i9, or Xeon processor or later
AMD Ryzen or Epyc class processor or later
PCI Express 4.0 x16 (preferred) expansion slot
System memory greater than or equal to GPU memory, twice the GPU memory recommended
Internet connection for driver installation
DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)

NVIDIA RTX A4500 professional graphics card
NVIDIA RTX Quick Start Guide
NVIDIA RTX Support Guide
DisplayPort to DVI-D SL adapter
Auxiliary power cable
