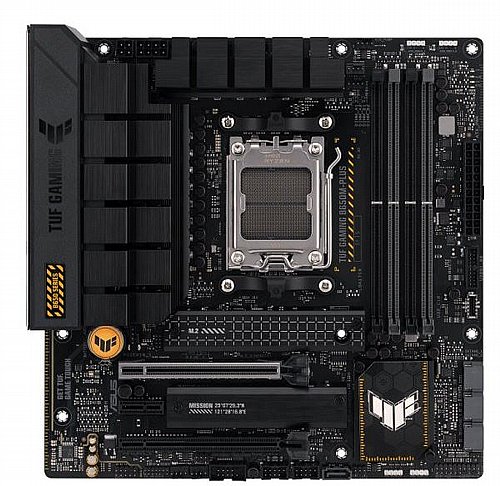

לוח אם ASUS TUF GAMING B650M-PLUS AMD AM5 B650 DDR5
-
מקט: 90MB1BG0-M0EAY0
-
אחריות: 36 חודשים
-
קישור לאתר יצרן: ASUS
-
מספר תשלומים: 4
מחיר ₪ 1,085
חזרו אלי בקשר למוצר זה
מדוע לקנות אצלנו?
מתחייבים לשירות
אמין ומקצועי
משלוחים לכל
חלקי הארץ
מחירים ללא
תחרות
ניסיון של
20 שנה
מדוע לקנות אצלנו?
מתחייבים לשירות
אמין ומקצועי
משלוחים לכל
חלקי הארץ
מחירים ללא
תחרות
ניסיון של
20 שנה
שירות לקוחות מקצועי, מחירים אטרקטיביים וזמני אספקה מהירים!
- אחריות: 36חודשים
- זמן אספקה: עד7ימי עסקים
דגם
TUF GAMING B650M-PLUS
P/N
90MB1BG0-M0EAY0
מעבד
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
* Refer to www.asus.com for CPU support list.
ערכת שבבים
AMD B650
זיכרון
4x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
גרפיקה
1x DisplayPort*
1x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
1x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
חריצי הרחבה
AMD Ryzen™ 7000 Series Desktop Processors*
1x PCIe 4.0/3.0 x16 slot
AMD B650 Chipset
1x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1x PCIe 4.0/3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
1x PCIe 4.0/3.0 x16 slot
AMD B650 Chipset
1x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1x PCIe 4.0/3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
אחסון
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
רשת
1x Realtek 2.5Gb Ethernet
TUF LANGuard
TUF LANGuard
תקשורת אלחוטית
-
USB
Rear USB (Total 8 ports)
1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
2x USB 3.2 Gen 2 ports (2x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
4x USB 2.0 ports (4x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
2x USB 3.2 Gen 2 ports (2x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
4x USB 2.0 ports (4x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
שמע
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

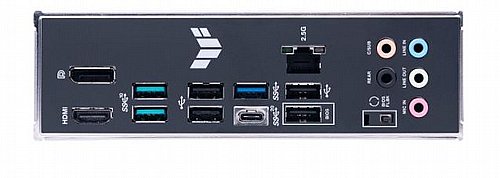

חיבורים ויציאות
1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
2x USB 3.2 Gen 2 ports (2x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMI®port
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button
2x USB 3.2 Gen 2 ports (2x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMI®port
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button
חיבורים פנימיים
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB Gen 1 connector (supports USB Type-C® )
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB Gen 1 connector (supports USB Type-C® )
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
תכונות מיוחדות
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
תכונות תוכנה
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trialversion)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trialversion)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
ניהוליות
WOL by PME, PXE
מערכות הפעלה תומכות
Windows® 11, Windows® 10 64-bit
תצורה
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

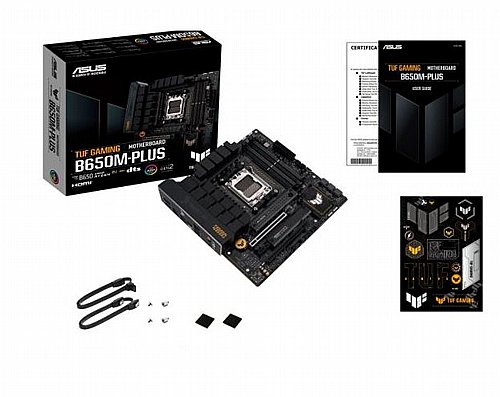

תכולת אריזה
Motherboard
1x TUF GAMING B650M-PLUS motherboard
Cables
2x SATA 6Gb/s cables
Miscellaneous
1x M.2 Rubber Package
1x M.2 SSD Screw package
Documentation
1x TUF Certification card
1x User guide
1x TUF GAMING B650M-PLUS motherboard
Cables
2x SATA 6Gb/s cables
Miscellaneous
1x M.2 Rubber Package
1x M.2 SSD Screw package
Documentation
1x TUF Certification card
1x User guide
| שדרוגים | |
|---|---|
| יצרן: | Asus |
| תושבת Socket: | AM5 |
| ערכת שבבים Chipset: | AMD B650 Chipset |
| סוג זיכרון: | DDR5 |
| גודל לוח: | MicroATX |
| חריצי זיכרון: | 4 |
| חיבורי תצוגה: | HDMI, DisplayPort |
| מעבד: | AMD |
| רשת אלחוטית: | לא |
