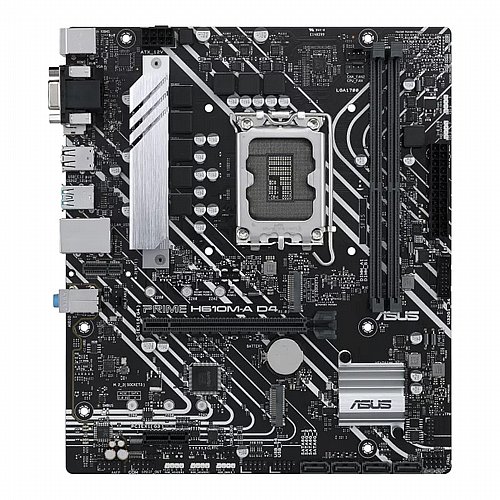

לוח אם חברת Asus H610M-A D4 DDR4 LGA1700 DP HDMI VGA

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

1 x DisplayPort**

1 x D-Sub port

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Intel® 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

V-M.2 slot only (Key E, CNVi & PCIe)*

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

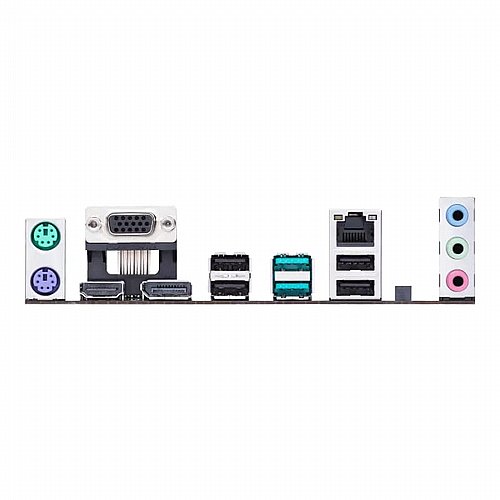

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x D-Sub port

1 x V-M.2 slot (Key E)

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x COM Port header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

AURA Sync

- AURA RGB headers

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 2+

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

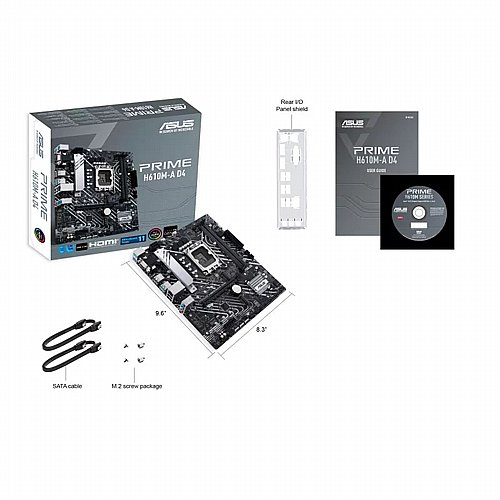

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

mATX Form Factor
