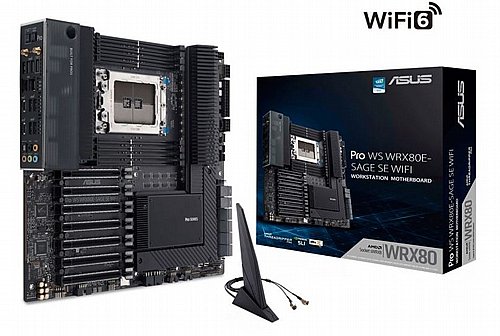

לוח אם חברת Asus דגם Pro WS WRX80E-SAGE SE WIFI

8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*

8 Channel Memory Architecture

AMD Ryzen™ Threadripper™ PRO Series Processors

7 x PCIe 4.0/3.0 x16 slot(s)*

AMD Ryzen™ Threadripper™ PRO Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*

AMD WRX80 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*

4 x SATA 6Gb/s ports

ASMedia ASM1061 Controller

4 x SATA 6Gb/s ports

Supports NVMe RAID configurations via M.2 storages

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

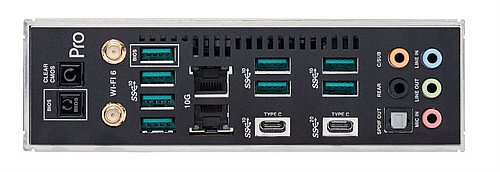

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)

1 x ASUS Wi-Fi Module

2 x Intel® X550-AT2 dual 10Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

6 x 4-pin Chassis Fan header(s)

1 x VRM heatsink Fan header

1 x Chipset Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

2 x 6-pin PCIe Graphics Card connector

1 x 8-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

2 x U.2 slots

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BMC Related

1 x BMC switch

1 x IPMI switch

1 x Messange LED header

1 x Micro SD card socket

2 x LAN LED header(s)

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header

1 x VPP_I2C header

Miscellaneous

1 x COM Port header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x RTC Battery header

ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

Bespoke Motherboard Design & Business Focused Features

- Event Log in ASMB9-iKVM

- 24/7 Reliability

- Overcurrent Protection

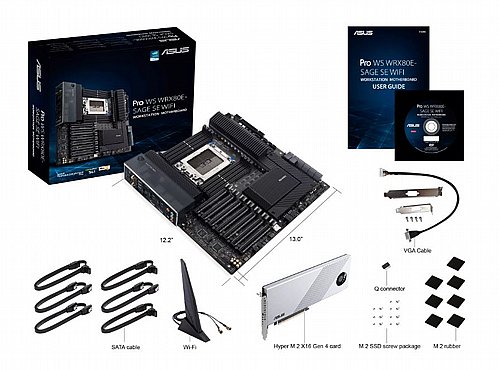

Cables

6 x SATA 6Gb/s cables

1 x VGA cable

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x Hyper M.2 X16 Gen 4 Card

3 x M.2 Rubber Package(s)

3 x M.2 SSD screw package(s)

1 x Q-connector

Installation Media

1 x Support DVD

Documentation
