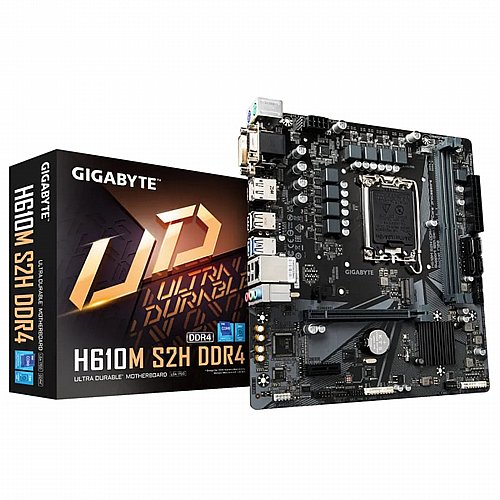

לוח אם חברת Gigabyte H610M S2H DDR4 LGA1700 DP HDMI VGA DVI
  • לוח אם חברת Gigabyte H610M S2H DDR4 LGA1700 DP HDMI VGA DVI
  • לוח אם חברת Gigabyte H610M S2H DDR4 LGA1700 DP HDMI VGA DVI
  • לוח אם חברת Gigabyte H610M S2H DDR4 LGA1700 DP HDMI VGA DVI

לוח אם חברת Gigabyte H610M S2H DDR4 LGA1700 DP HDMI VGA DVI

  • מקט: GB-H610M-S2H-DDR4
  • אחריות: 36 חודשים
  • קישור לאתר יצרן:  GIGABYTE
  • מספר תשלומים:  2
  • אפשרויות משלוח:
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי בחינם
    • איסוף עצמי מסניף כפר סבא רחוב היוצרים 3 0 ₪
    • שליח עד הבית - לא כיסאות או שולחנות 55 ₪
    • משלוח כיסא או שולחן - שליח עד הבית 150 ₪
    סגירה

מחיר   ₪ 415 ILS 7/7/2027 In stock GIGABYTE GB-H610M-S2H-DDR4 GB-H610M-S2H-DDR4

קנה עכשיו הוסף לסל
הוסף למועדפים
חזרו אלי בקשר למוצר זה

ברצוני לקבל מידע על מוצרים ומבצעים באתר

אני מסכים/ה לתנאים, ההגבלות, ל-מדיניות פרטיות ומאשר/ת יצירת קשר מאתר rsm.co.il.

מדוע לקנות אצלנו?

מתחייבים לשירות
אמין ומקצועי

משלוחים לכל
חלקי הארץ

מחירים ללא
תחרות

ניסיון של
20 שנה

שירות לקוחות מקצועי, מחירים אטרקטיביים וזמני אספקה מהירים!

  • אחריות: 36חודשים
  • CPU
    1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® H610 Express Chipset
  • Memory
    1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports
    4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
    2. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
  • USB
    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x RGB LED strip header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper

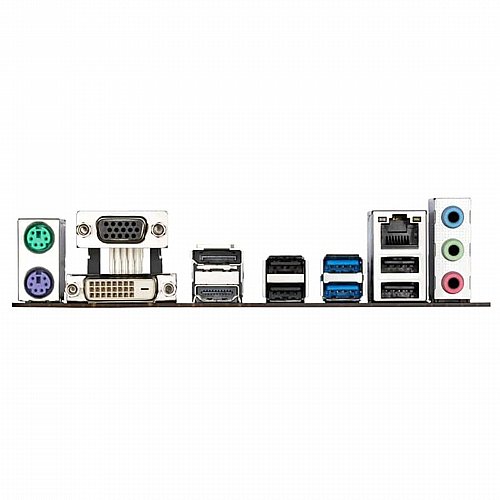

  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x DisplayPort
    6. 1 x HDMI 2.0 port
    7. 2 x USB 3.2 Gen 1 ports
    8. 4 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 23.0cm x 21.5cm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
שדרוגים
יצרן: GigaByte
תושבת Socket: 1700
ערכת שבבים Chipset: Intel H610 Chipset
סוג זיכרון: DDR4
גודל לוח: MicroATX
חריצי זיכרון: 2
חיבורי תצוגה: VGA, DVI, HDMI, DisplayPort
מעבד: Intel
רשת אלחוטית: לא
