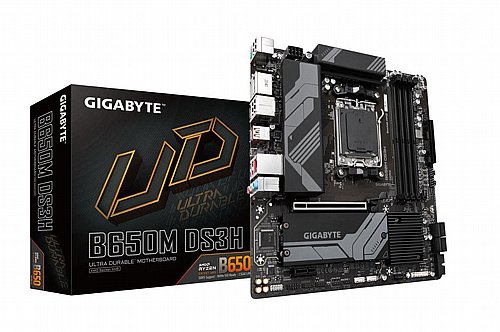

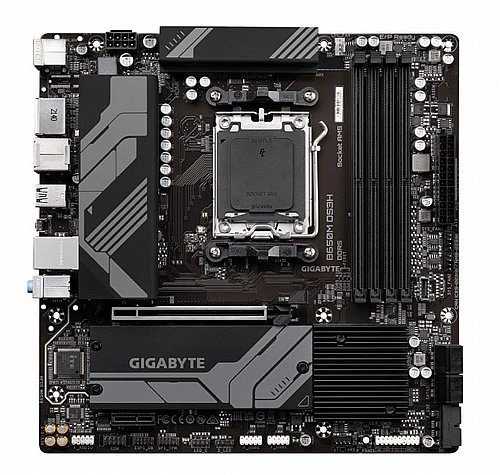

לוח אם חברת Gigabyte דגם GIGABYTE B650M DS3H

מחיר ₪ 710 ILS 7/7/2027 In stock GIGABYTE GIGABYTE-B650M-DS3H GIGABYTE-B650M-DS3H

קנה עכשיו הוסף לסל

חזרו אלי בקשר למוצר זה

*שם:

*טלפון:

*דואר אלקטרוני:

תוכן:

כמה זה 7 + 8?

ברצוני לקבל מידע על מוצרים ומבצעים באתר

אני מסכים/ה לתנאים, ההגבלות, ל-מדיניות פרטיות ומאשר/ת יצירת קשר מאתר rsm.co.il.

שירות לקוחות מקצועי, מחירים אטרקטיביים וזמני אספקה מהירים!

Supported CPU
CPU Socket Type	AM5
CPU Type	AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
Maximum Memory Supported	4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Channel Supported	Dual channel memory architecture
ECC Supported	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Buffer Supported	Un-buffered
Memory Feature	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
PCI Express x1	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek® Audio CODEC
Audio Channels	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Onboard LAN
Max LAN Speed	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rear Panel Ports

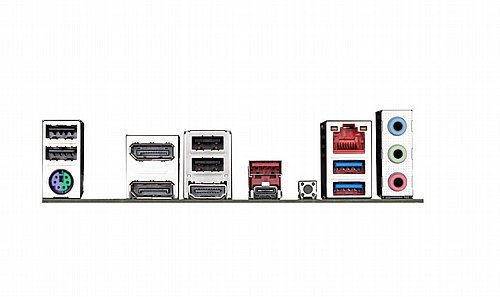

Back I/O Ports	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
PS/2	1 x PS/2 keyboard/mouse port

Internal I/O Connectors
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	7.17 in x 7.17 in

Windows 11 Compatibility
Windows 11	Support for Windows 11 64-bit Support for Windows 10 64-bit

Features
Features	AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5:4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage:2PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks:2.5GbE LAN Extended Connectivity:2DP, HDMI, 2USB-C® 10Gb/s Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
