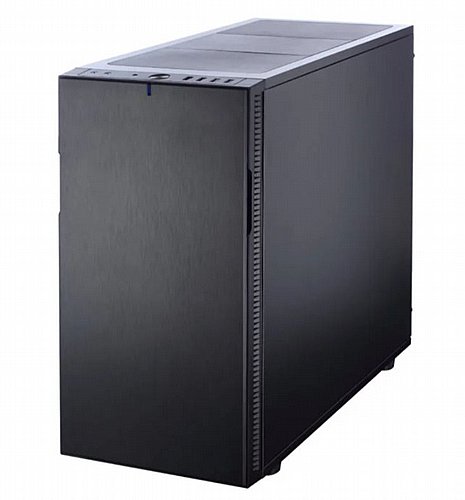

מארז חברת Fractal Design דגם Define 5 Compact Black Solid צבע שחור

Specifications

• 3.5" HDD/2.5" SSD positions
  8
• 2.5" dedicated SSD unit positions
  2 (fits SSDs up to 12 mm thick)
• 5.25" bays
  2 (removable)
• Expansion slots
  7
• Front ports
  2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
• Total fan mounts
  9
• Front fan
  2x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)
• Top fan
  3x 120/140 mm
• Rear fan
  1x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM)
• Bottom fan
  2x 120/140 mm
• Side fan
  1x 120/140 mm
• Dust filters
  Front fans, Bottom fans (ejects from the front of the case)
• Cable routing grommets
  Yes
• Fixed velcro straps
  Yes
• Captive thumbscrews
  Right side panel
• Left side panel
  Industrial sound-dampened steel
• Right side panel
  Industrial sound-dampened steel

Compatibility

• Power supply type
  ATX
• Motherboard compatibility
  ATX, Micro ATX, Mini ITX
• Front radiator
  360, 280, 240, 140 or 120 mm (without drive bays)
• Top radiator
  420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators; 420 and 360 mm radiators require removal of the ODD bay)
• Rear radiator
  120 or 140mm
• Bottom radiator
  120 or 240 mm (Use of radiators in the bottom position limits the PSU length to 165 mm)
• PSU max length
  190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location
• GPU max length
  310 mm with the top HDD cage installed or 440 mm with the top cage removed
• CPU cooler max height
  180 mm
• Cable routing space
  20-35 mm

Dimensions

• Case dimensions (WxHxD)
  232 x 451 x 521 mm
• Case dimensions - with feet/screws/protrusions
  232 x 462 x 531 mm
• Net weight
  10.7 kg
• Package dimensions (WxHxD)
  327 x 615 x 540 mm
• Package weight
  12.5 kg
• Volume
  54.5 liters

Other

• Warranty
  2 Years
• Package contents
  Define R5 computer case, User manual, Accessory box
• EAN
  7350041082583
• UPC
  817301012584
• Additional information
  Available for System Integrators
• Product code (Black)
  FD-CA-DEF-R5-BK
• Product code (Blackout)
  FD-CA-DEF-R5-BKO
• Product code (Titanium)
  FD-CA-DEF-R5-TI
• Product code (White)
  FD-CA-DEF-R5-WT
