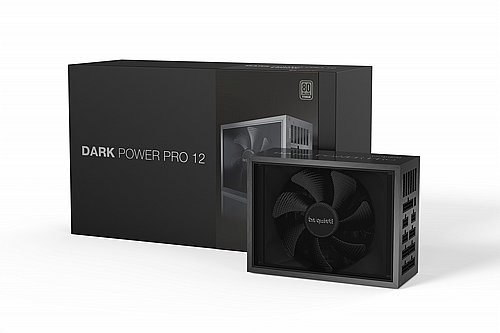

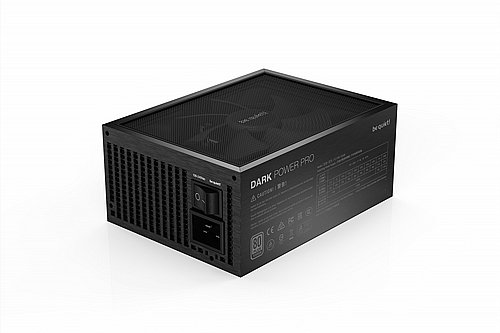

ספק כוח מודולרי חברת Be Quiet! Dark Power 12 1500W 80plus Titanium
-
מקט: BQ-BN312
-
אחריות: 120 חודשים
-
קישור לאתר יצרן: Be quiet
-
מספר תשלומים: 7
מחיר ₪ 1,950
חזרו אלי בקשר למוצר זה
מדוע לקנות אצלנו?
מתחייבים לשירות
אמין ומקצועי
משלוחים לכל
חלקי הארץ
מחירים ללא
תחרות
ניסיון של
20 שנה
מדוע לקנות אצלנו?
מתחייבים לשירות
אמין ומקצועי
משלוחים לכל
חלקי הארץ
מחירים ללא
תחרות
ניסיון של
20 שנה
שירות לקוחות מקצועי, מחירים אטרקטיביים וזמני אספקה מהירים!
- אחריות: 120חודשים
General data
| Model | Dark Power Pro 12 1500W |
| Continuous power (W) | 1500 |
| Peak power (W) | 1600 |
| Form factor | Version 2.51 |
| Form factor EPS 12V | Version 2.92 |
| Modular Cable management | ✓ |
| Topology | Full bridge + LLC + SR + DC/DC |
| Wire-free design (DC-side) | ✓ |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 17 / 9 |
| PFC | active |
| Power factor at 100% load | >0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | <0.06 |
| Average life time (h / 25°C) | 300,000 |
| Operating temperature up to (°C) | 50 |
Infographics
Output
| 12V rails (multi-rail operation) | 6 |
| 12V single rail operation | ✓ |
| Overclocking key | ✓ |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 40 |
| +12V2 (A) | 40 |
| +12V3 (A) | 40 |
| +12V4 (A) | 40 |
| +12V5 (A) | 45 |
| +12V6 (A) | 45 |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3.5 |
| Max. combined power 12V (W) | 1500 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time at 100% load (ms) | 18 |
| Power good signal | 100 - 150ms |
Fan / Cooling technology
| Fan type | Silent Wings |
| +SilentWings | ✓ |
| Motor technology | 6-pole fan motor |
| Bearing technology | FDB |
| Fan size (mm) | 135 |
| Max. fan speed (rpm), temperature-dependent | 2600 |
| Temperature control for case fans | - |
| dB(A) at 20% load | 12.1 |
| dB(A) at 50% load | 12.4 |
| dB(A) at 100% load | 31.5 |
Protection
| OCP (over current protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
| SIP (Surge & Inrush Protection) | ✓ |
Safety certification
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| FCC | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| RCM (Australia) | ✓ |
| BSMI | ✓ |
| CU (Russia) | ✓ |
| CCC | ✓ |
Eco / Efficiency
| 80 PLUS certification | Titanium |
| Efficiency (%) at 230V, 20% load | 94.7 |
| Efficiency (%) at 230V, 50% load | 94.9 |
| Efficiency (%) at 230V, 100% load | 92.8 |
Environmental directives
| Energy Star | 7.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHs | ✓ |
Cables / Connectors
| Nvidia® SLI (RTX 3090) ready | ✓ |
| Cable management | Modular |
| Sleeved cables | Individually sleeved |
| Flat cables | - |
| Cable length to mainboard (cm) | 60 |
| Cable length to first connector (cm) | 50 |
| Maximum cable length (cm) | 120 |
| All-in-one cable (SATA/PATA/FDD) | ✓ |
| No. of cables | 17 |
| ATX-Motherboard (20+4-pin) | 1 |
| P8 (CPU) | 1 |
| P4+4 (CPU) | 1 |
| P4 (CPU) | - |
| PCI-e 6-pin (GPU) | - |
| PCI-e 6+2-pin (GPU) | 10 |
| PATA | 8 |
| SATA | 16 |
| FDD (Floppy) | 2 |
| External fan connectors | - |
Casing
| Dimensions without cable (L x W x D), (mm) | 200 x 150 x 86 |
| Weight (kg) | 2.44 |
| Color | Black |
Accessories
| Thumb screws | ✓ |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | ✓ |
| Box/Bag for PSU/Cables | ✓ |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
| OCK slot bracket with switch / OCK jumper | ✓ |
| SFX-to-ATX adapter bracket | - |
Service
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP
| Article number | BN647 |
| EAN code | 4260052187715 |
| Dimensions, package (L x W x H), (mm) | 417 x 253 x 152 |
| Gross weight, package (kg) | 6.9 |
| Pieces per packaging unit | 2 |
| Dimensions, shipping box (L x W x H), (mm) | 440 x 325 x 283 |
| Gross weight, shipping box (kg) | 14.6 |
| RRP (€) | 439.00 |
| שדרוגים | |
|---|---|
| יצרן: | Be Quiet |
| הספק: | 1500W-2000W |
| תכונות: | מודולרי - כבלים שליפים, Active PFC |
| אחריות: | 10 שנים |
| נצילות: | 80Plus TITANIUM |
